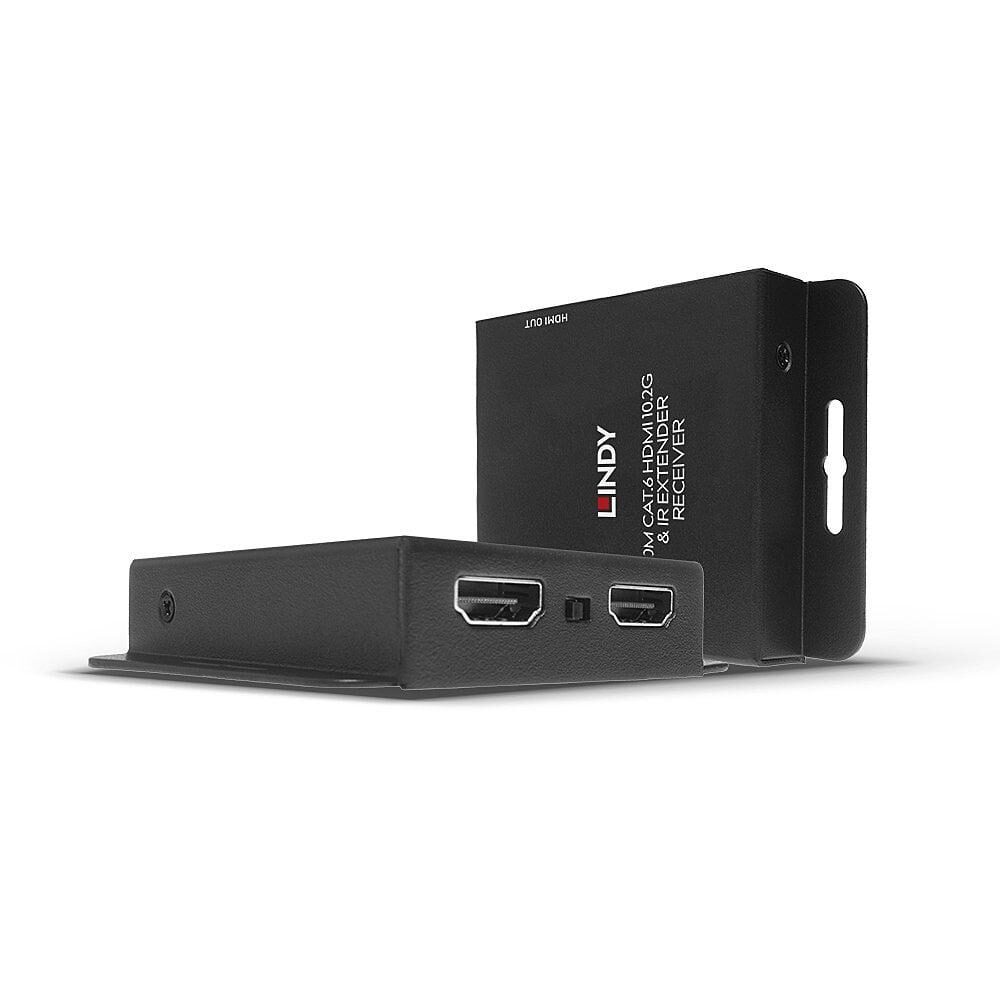

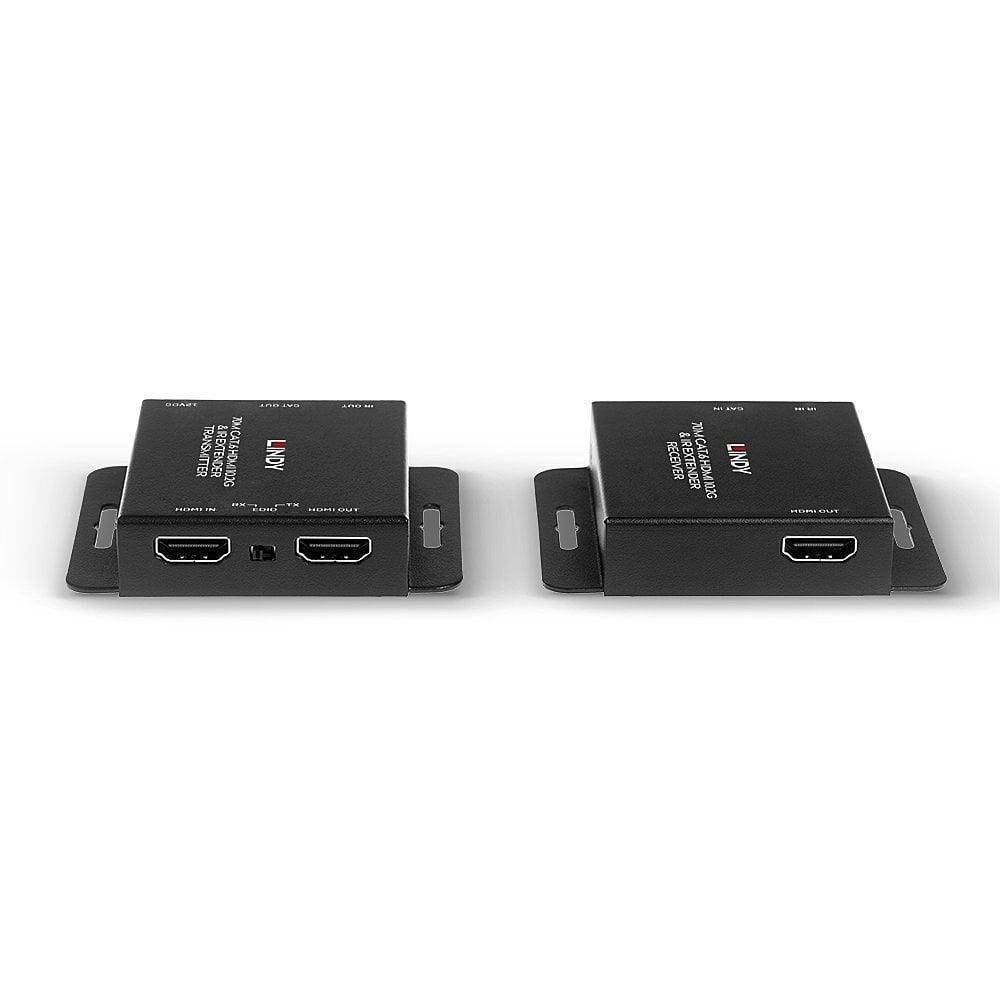

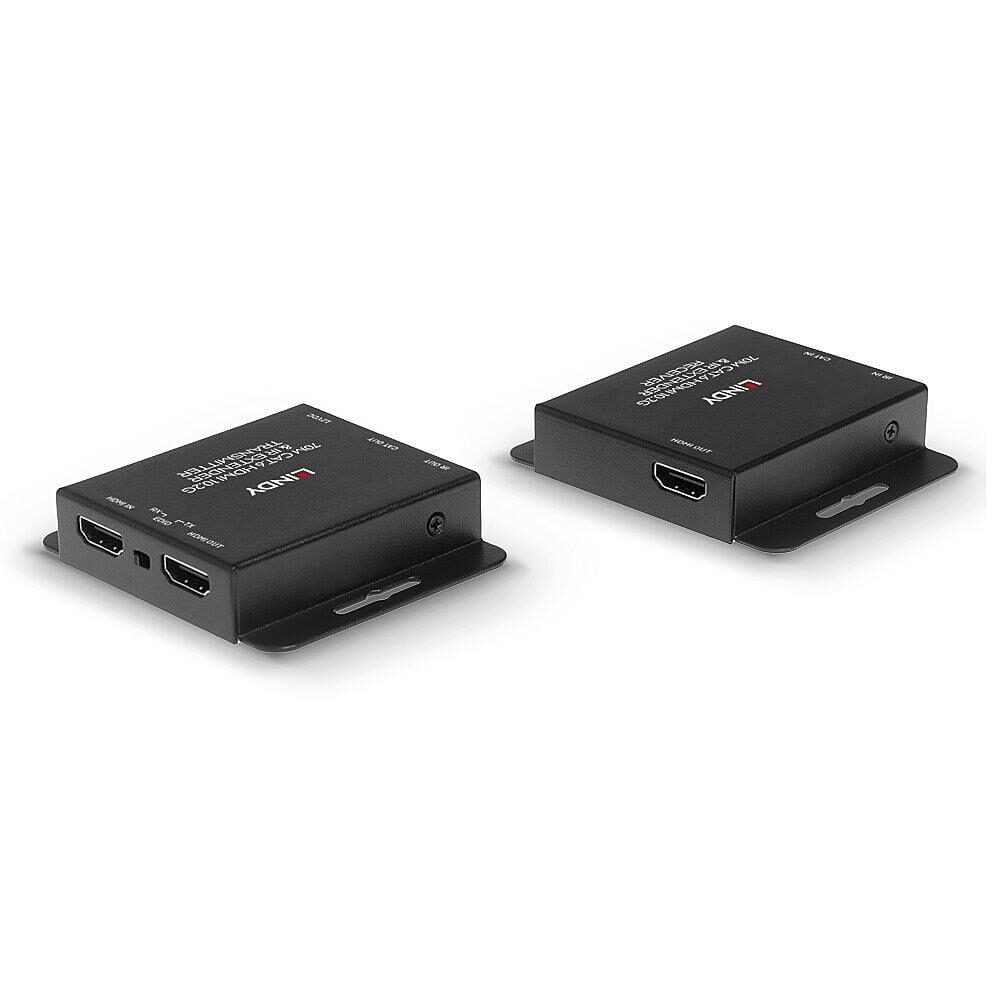

Descriere produs Lindy 50m Cat.6 HDMI IR Extender with Loop Out Description Extends HDMI IR Signals up to 70m using a single Cat.6 Cable Supports resolutions up to 3840×2160@30Hz 4:4:4 8bit Features a loop-through HDMI output on the Transmitter for local monitoring Supports power over Cable, only a single
Lindy 50m Cat.6 HDMI IR Extender with Loop Out Description Extends HDMI IR Signals up to 70m using a single Cat.6 Cable Supports resolutions up to 3840×2160@30Hz 4:4:4 8bit Features a loop-through HDMI output on the Transmitter for local monitoring Supports power over Cable, only a single power supply is required Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.4 Supported Bandwidth: 10.2Gbps Maximum Distance: 70m (229.66ft) – 1920×1080@60Hz, 40m (131.23ft) – 3840×2160@30Hz 4:4:4 8bit Maximum Resolution: 3840×2160@30Hz 4:4:4 8bit HDCP Support: HDCP 1.4 EDID Pass Through: EDID Copy Functionality Supported Audio: Up to 7.1 (Pass-through) Separate Audio Ports: – IR Support: 20-60kHz CEC Support: – Serial Interface: – Transmission Protocol: – Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: GSV1001 Special Features: PoC (Power over Cable), IR Pass-through, Loop Out Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female) Receiver Input: RJ-45 (Female), IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: – Power : 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 79.5×16.5x69mm (3.13×0.65×2.72in) Housing Material: Metal Net Weight: 0.13kg (0.29lb) per unit Operating Temperature : 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (no condensation) Power Requirements: 12VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 200x70x113mm (7.87×2.76×4.45in) Gross Weight: 0.414kg (0.91lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS, REACH California Proposition 65 Package Contents Transmitter Receiver Multi-country Power Supply (UK, EU, US AUS) IR Transmitter IR Receiver Lindy Manual https://www.lindy-international.com/70m-Cat-6-HDMI-4K30-IR-Extender- with-PoC-Loop-Out-.htm?websale8=ld0101.ld021102pi=38208 ci=20
Specificatii produs:
Starea produsului Nou
Producator LINDY
Garantie 24 luni
Greutate 0.56 kg
Dimensiune 20 cm (lungime) x 12 cm (latime) x 8 cm (inaltime)
Fibre optical interface None
Distanta maxima 70m
Rezolutie maxima 3840×2160@60Hz
Supported bandwidth 10GBPS
Interfata HDMI HDMI 1.3
