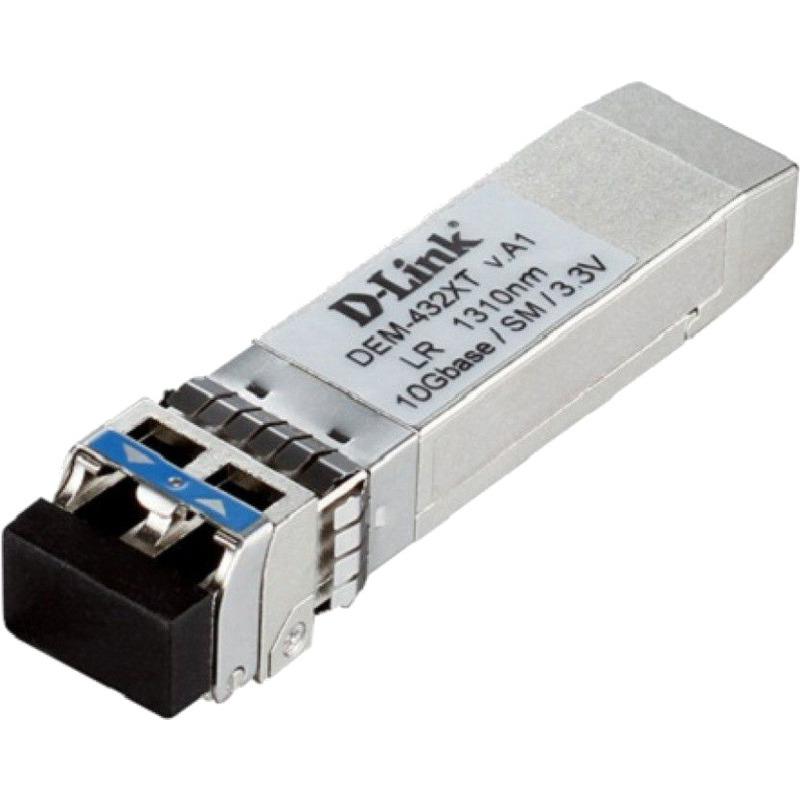

Descriere produs Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/

Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.1 dB/ 10.1 dB;

Specificatii produs:

Starea produsului Nou

Producator D-LINK

Greutate 0.1 kg

Storage relative humidity (H-H) 5 - 95%

Hot-Plug support Yes

Shipping (inner) case length 36 cm

Duplex system Full

Maximum data transfer rate 10000 Mbit/s

SFP transceiver type Fiber optic

Shipping (inner) case height 31 cm

Shipping (inner) case width 26 cm

Pallet gross length 102 cm

Pallet gross width 122 cm

Interface type SFP

Single-mode fiber (SMF) supported Yes

Fiber optic connector LC

Fiber cable diameters supported (core/cladding) 9/125 µm

Maximum transfer distance 10000 m

Wavelength 1310 nm

Link budget 10.1 dB

Fiber ethernet cabling technology 10GBASE

Master (outer) cases per pallet (air) 60 pc(s)

Master (outer) cases per pallet (sea) 60 pc(s)

Multi-mode fiber (MMF) supported No

SFP transceiver standard LR

Tx power (min) -8.5 dBmW

Tx power (max) 0.5 dBmW

Rx power (min) -12.6 dBmW

Rx power (max) 0.5 dBmW
