Descriere produs quot;Cablu incendiu JEH(St)H…Bd FE180 PH120 2x2x0.8 mm+0.8 , rezistenta la foc 120 minute, compatibilitate E30/E90producator 2M Kablo, 3T00000109-100Diametru fir: 0.8mmConductor: perechi torsadate cu protectie din fibra de sticla, cupru 100%Culori fire: conform -VDE0815Manta: Halogen free, si
quot;

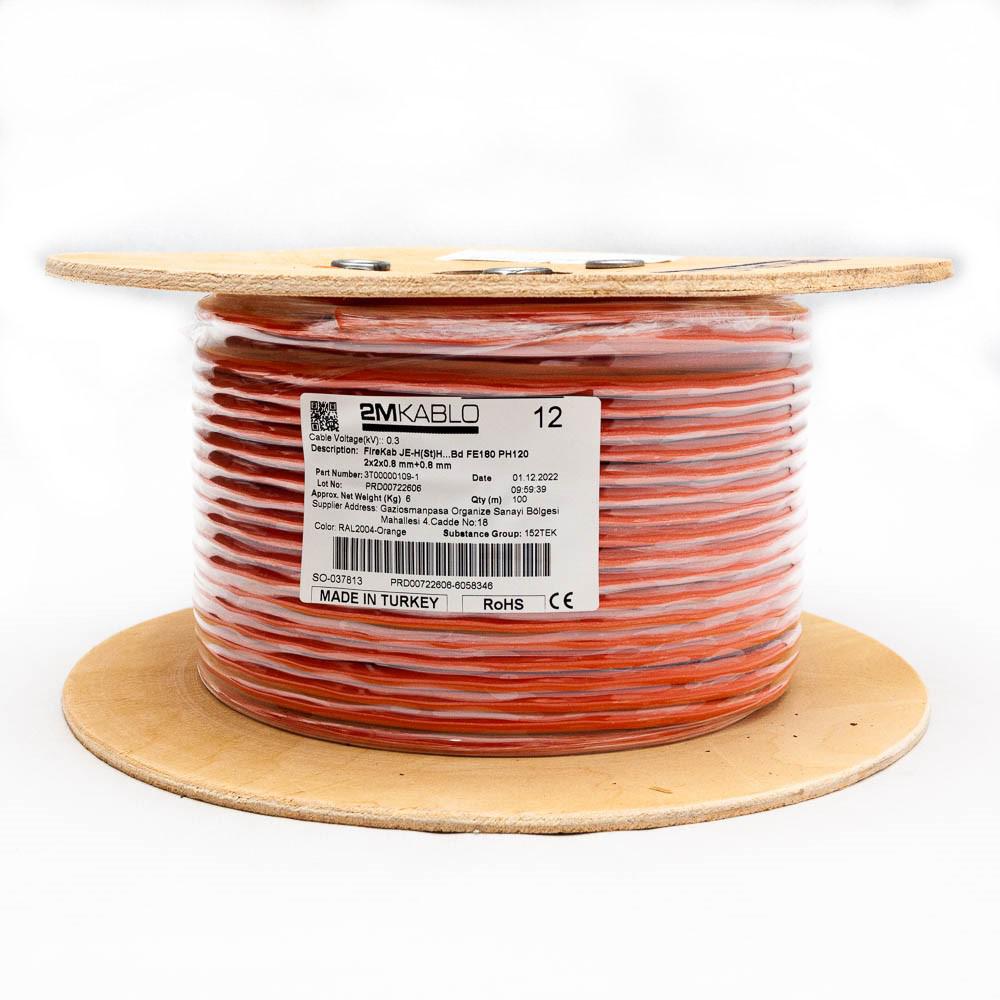

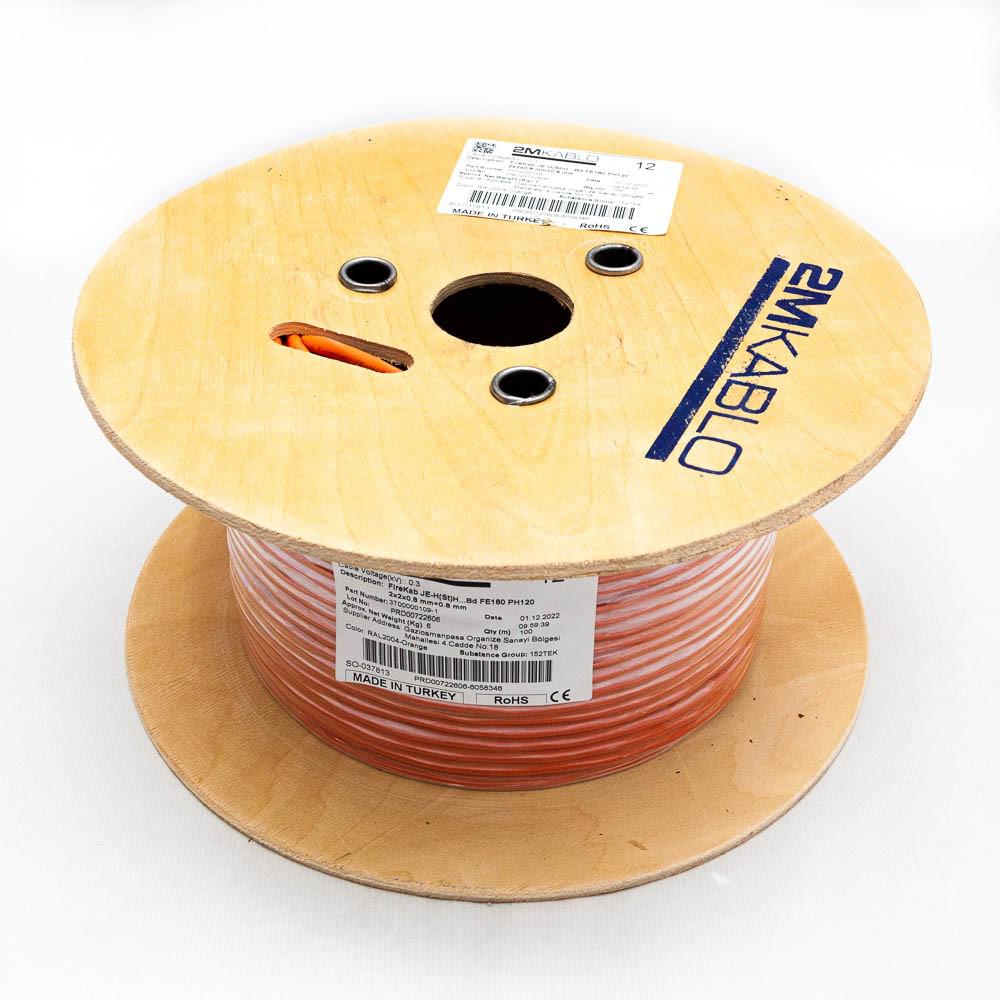

Cablu incendiu JEH(St)H…Bd FE180 PH120 2x2x0.8 mm+0.8 , rezistenta la foc 120 minute, compatibilitate E30/E90
producator 2M Kablo, 3T00000109-100
Diametru fir: 0.8mm
Conductor: perechi torsadate cu protectie din fibra de sticla, cupru 100%
Culori fire: conform -VDE0815
Manta: Halogen free, si rezistenta la flacara, culoare portocaliu (RAL2004Orange), Fire ResistantSilicon Rubber (EN 50363-1, BS7655EI2)
Ambalare: tambur 100metri
OperatingVoltage 300V
Flame Retardancy IEC/EN 60332-1, IEC/EN 60332-3-24
Fire Resistance IEC60331-21,EN 50200 (PH120)
Smoke Density IEC/EN 61034-1/2
CorrosiveGases Measurement IEC/EN 60754-1/2
Min. Bending Radius: 10x cable diameter
Conductor Resistance 0.80mm – ≤36.6 Ω/km;1.00 mm – ≤22.2 Ω/km;1.50 mm²- ≤12.1 Ω/kmquot;
Specificatii produs:
Starea produsului Nou
Producator 2MKABLO
Greutate 6.9 kg
Culoare Portocaliu
