Descriere produs Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TX:1270nm/RX:1330nm, Single-mode, 10km

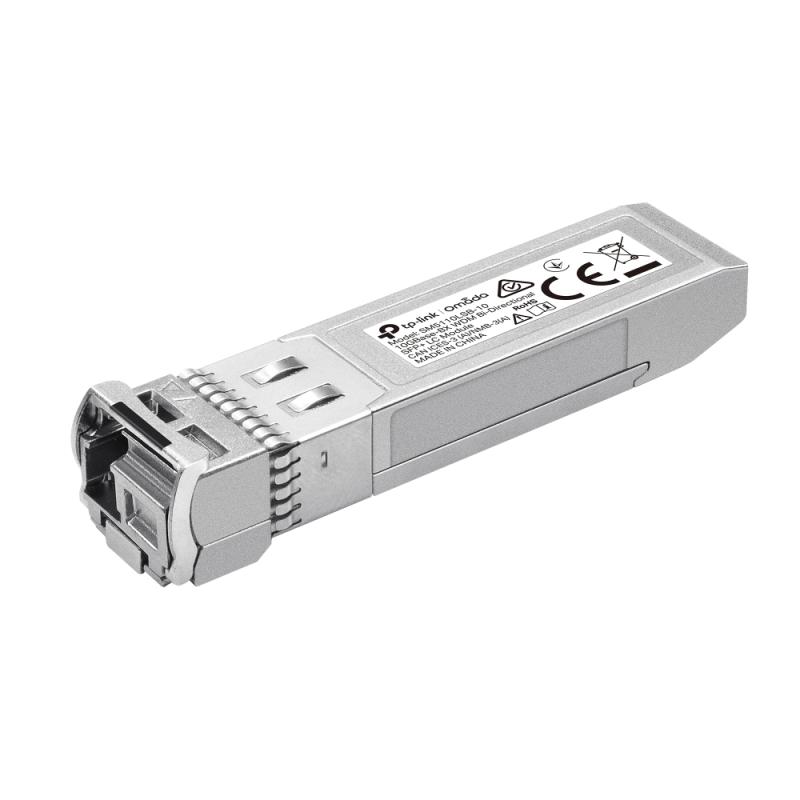

Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module SPEC: LC/UPC Connector, TX:1270nm/RX:1330nm, Single-mode, 10km

Specificatii produs:

Starea produsului Nou

Producator TP-LINK

Greutate 0.069 kg

Switch-CM-Type SFP

Storage relative humidity (H-H) 5 - 90%

Maximum operating temperature 70 °C

Hot-swap Yes

Minimum operating temperature 0 °C

SFP transceiver type Fiber optic

Single-mode fiber (SMF) supported Yes

Fiber cable diameters supported (core/cladding) 9/125 µm

Maximum transfer distance 10000 m

Input voltage 3.3 V

Interface type SFP+

Fiber optic connector LC (UPC)

Digital Diagnostics Monitoring (DDM) Yes

Rx wavelength (max) 1330 nm

Networking standards IEEE 802.3ae

Data Transfer Rate 10300 Mbit/s

Maximum data transfer rate 10312 Mbit/s

Tx wavelength (max) 1270 nm

Product colour Silver

Storage temperature (T-T) -40 - 85 °C

Height 12 mm

Depth 14 mm

Operating temperature (T-T) 0 - 70 °C

Compliance certificates CE, Federal Communications Commission (FCC), RoHS

Width 57 mm
