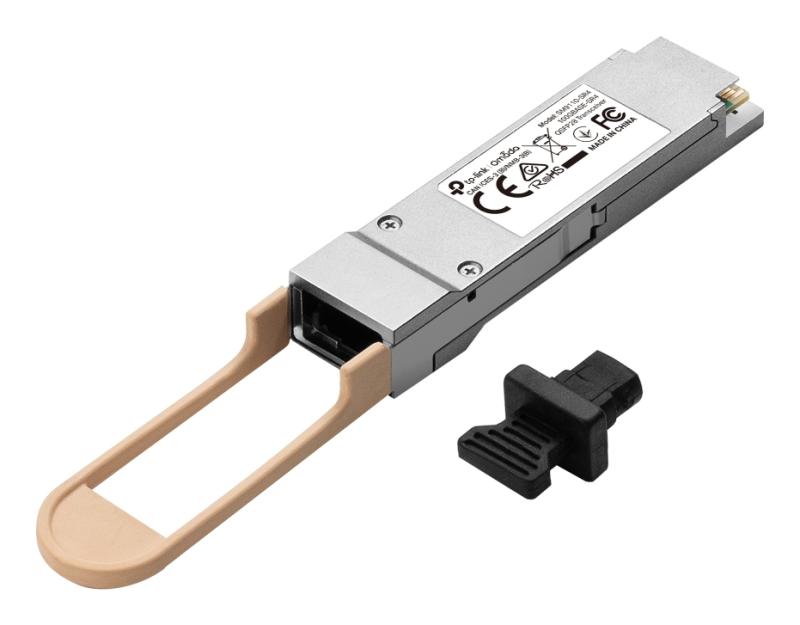

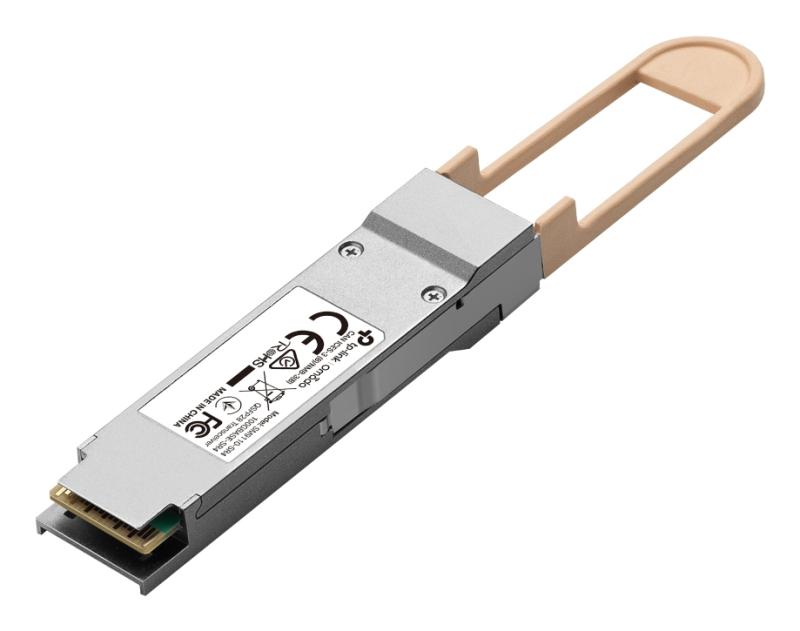

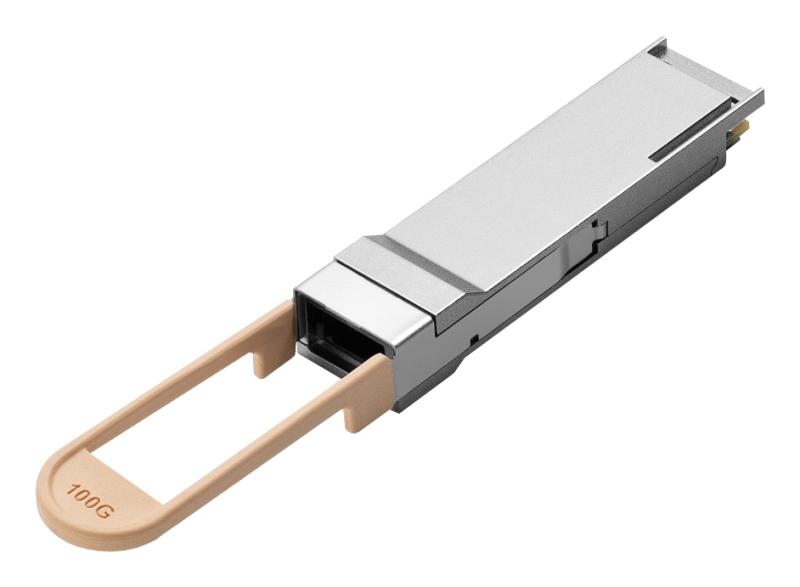

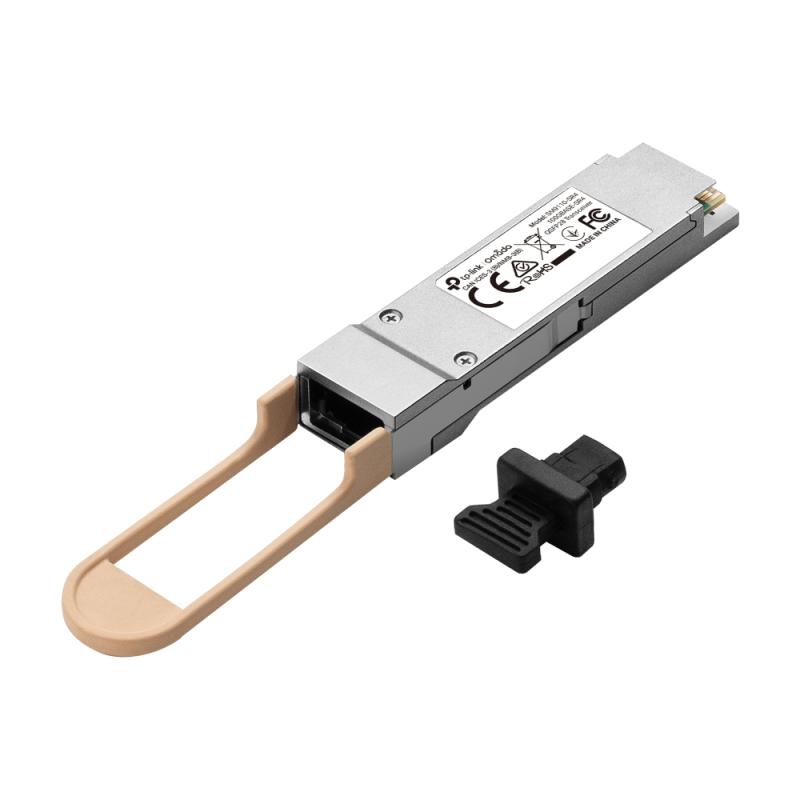

Descriere produs Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable

Specificatii produs:

Starea produsului Nou

Producator TP-LINK

Greutate 0.097 kg

Switch-CM-Type SFP

Maximum operating temperature 70 °C

Plug and Play Yes

Hot-swap Yes

Storage relative humidity (H-H) 0 - 85%

Minimum operating temperature 0 °C

SFP transceiver type Fiber optic

Maximum data transfer rate 100000 Mbit/s

Interface type QSFP28

Multi-mode fiber (MMF) supported Yes

SFP transceiver standard SR4

Wavelength 850 nm

Input voltage 3.3 V

Single-mode fiber (SMF) supported No

Maximum transfer distance 150 m

Digital Diagnostics Monitoring (DDM) Yes

Fiber cable diameters supported (core/cladding) 50/125 µm

Data transfer rate 100000 Mbit/s|100000 Mbit/s

Fiber optic connector MPO-12, MTP

Tx power (min) -8.4 dBmW

Tx power (max) 2.4 dBmW

Ethernet interface type 40 Gigabit Ethernet, 100 Gigabit Ethernet

Networking standards IEEE 802.3ba, IEEE 802.3bm

Fiber ethernet cabling technology 40GBASE, 100GBASE

Form factor QSFP28

Width 124 mm
